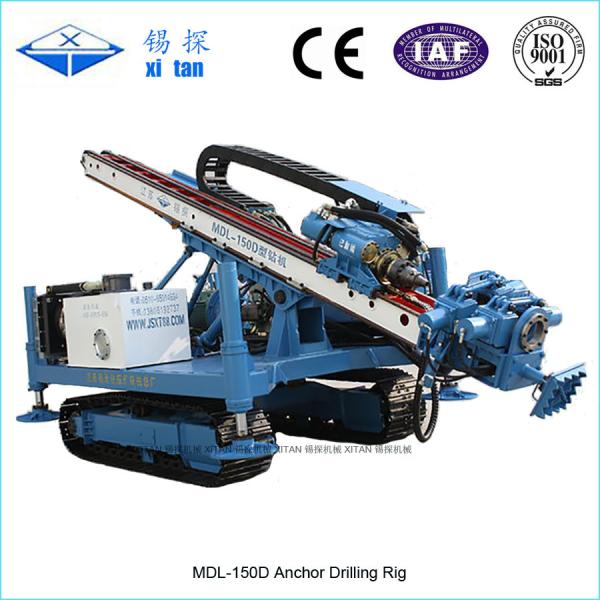

Crawler Mounted Anchor Drilling Rig Rock Layers Casing pipe Full Hydraulic MDL - 150D

Name: Crawler Mounted Anchor Drilling Rig Rock Layers Casing pipe Full Hydraulic MDL 150D
Brand: xitan
Price: 1 USD

Crawler Mounted Anchor Drilling Rig Rock Layers Casing pipe Full Hydraulic MDL - 150D Manufactures

Brand Name : xitan

Model Number : MDL-150D

Certification : ISO9001:2008

Place of Origin : Jiangsu,China

MOQ : 1Set/Sets

Price : Contact us

Payment Terms : T/T,L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : One set per month

Delivery Time : One month

Packaging Details : In 40′container with drilling tools

Applications : Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring

Color : Blue

Model : MDL-150D

Output torque of power head : 7500N.m

Stroke of slide frame : 900mm

Lifting force of power head : 70KN

Contact Now

MDL-150D Crawler Mounted Anchor Drilling Rig Rock Layers Casing pipe Full Hydraulic

Quick Detail:

1. This 150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. According to the customer's requirements, the torque and rotate speed can be adjusted to achieve best efficiency. The speed of this drill rig can achieve 170 circles every minute. It is increased by 20% compared with that kind of 135D.
3. The 150D anchor crawler drilling rig can do single, double and triple jet grouting.
4. The 150D anchor crawler drilling rig is just applied to the rock and broken layer construction.

Description:

1. This 150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
2. The crawler drill rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering.
3. In addition, this 150D anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work..
5. The 150D anchor crawler drilling rig is just applied to the rock and broken layer construction.

Specifications:

Hole depth	130-170m
Rod dia	150-250mm
Hole angle(°)	0-90°
Output rotary speed of power head	10/20/30/35/40/60/65/70/85/130/170r/min
Stroke of power head	3400mm
Output torque of power head	7500N.m
Stroke of slide frame	900mm
Lifting force of power head	70KN
Feeding force of power head	36kN
Power	Electric motor:	55+18.5KW
Diesel engine	92KW(cummins)
Weight	6000KG
Dimensions (L×W×H)	5400×2100×2000mm

Applications:

1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
2. Jet grouting and dewatering.
3. This engineering drill rig can be used for drilling geothermal hole and well.
4. The blast hole,the anti-floating anchoring hole .

Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
